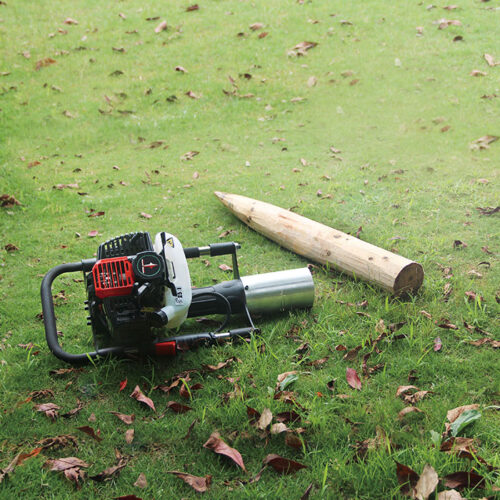

BYCON Petrol Post Driver - Petrol Post rammer Ø 120 mm set
Designed for professionals who demand speed, mobility and durability, the BYCON Petrol Post Driver combines a powerful 38cc 4-stroke engine with a sophisticated impact mechanism. The engine starts manually with a reliable pull starter and propels an impact frequency of 900-1 350 bpm through five supplied adapters, suitable for post diameters up to 120 mm. Thanks to the cast aluminium gearbox, the machine is light enough to be operated by one person, but strong enough to survive long days on the construction site. Four-way shock absorption and ergonomic rubber grips keep fatigue low, while fuel consumption stays below 0.48 L/hour - a big plus on remote sites.
Main specs
- Engine: 38 cc, 4-stroke, air-cooled (Euro 98 petrol)
- Stroke energy: 25 - 55 J - Stroke rate: 900 - 1 350 bpm
- Fuel tank: 0,65 L - Oil reservoir: 0.12 L (10W40)
- Pole diameter: max. Ø 120 mm with 5 adapters
- Weight (incl. adapters): approx. 22.7 kg - with mobile case
- Noise level: ≤ 104 dB(A) - hearing protection recommended
Specifications
- Engine output: 870 W
- Max torque: 1.65 Nm
- Average consumption: < 0.48 L/h
- Carburettor: Diaphragm H129-1C7
- Spark plug: CMR5H Torch
- Starting method: Hand start with pull cord
- Dimensions (L × W × H): 290 × 320 × 825 mm
Scope of delivery
- Petrol pole rammer 38 cc
- 5 adapters (Ø < 120 mm)
- BMC mobile case with inner foam
- Manual
Maintenance tips
- Before first use: fill engine oil to level (10W40).
- After 50 hours: Change hydraulic oil with HM46/H46 for maximum life of the stroke mechanism.
